Introduction Link to heading
Workflows are everywhere. From CI/CD pipelines, all system / data integration to business process automation. It wouldn’t be too far-fetched to say that even modern software build tools like make, maven or npm are used to define workflows.
There are countless tools out there that help people define, execute and monitor workflows varying from simple no-code tools to complex frameworks that allow developers to define workflows in code, or even architect their software as workflows.
Today, the rise of Agentic AI amplifies the need for workflows. As agents need to integrate and coordinate with external systems and other agents, workflows provide a structured way to manage these interactions.
What is a workflow? Link to heading
A Workflow is a repeatable, orchestrated sequence of activities/steps that transforms inputs into desired outputs by passing documents, data, or work items between processing entities—humans, services, or agents—under a defined control flow, triggers, and data-management rules.
Key Characteristics Link to heading
Automation of Procedures Link to heading

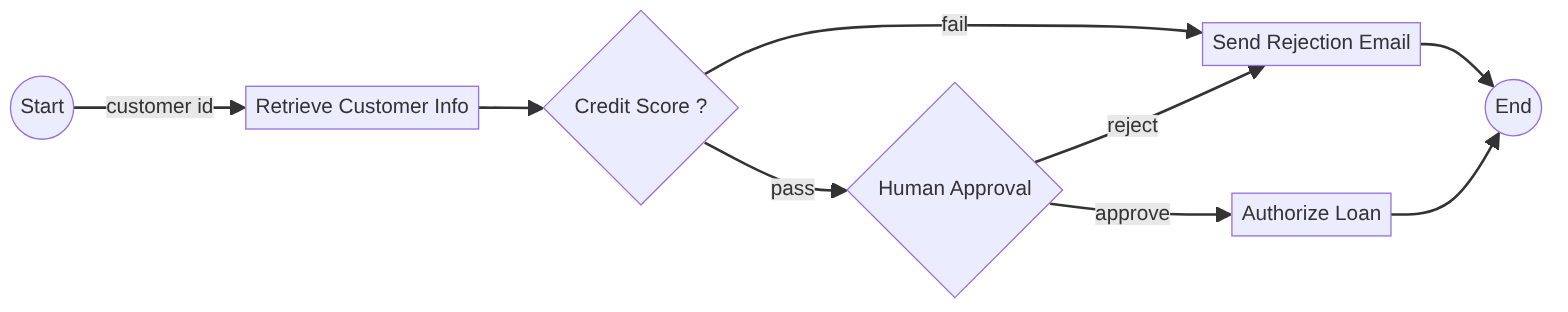

Breaking a larger process into discrete “atomic” steps that an engine (software) can schedule and execute, without human intervention once triggered. In some cases a human may be added in the loop to approve or review a step but the control of the flow should not be in the hands of the human. This is often encountered in BPMN-based workflows. The diagram below shows a simplified workflow for a loan approval process that consists of multiple automated steps and a human approval step.
Control Flow and Dependencies Link to heading
As already implied by the previous example a workflow is not just a collection of activities executed without human orchestration. A workflow also defines:
- Triggers
- Execution order
- Branching
- Dependencies

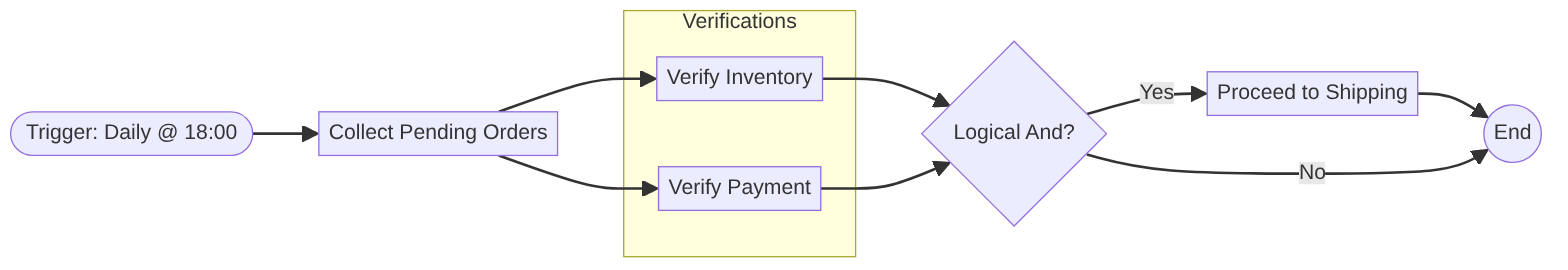

The diagram below shows these concepts in a simplified back-office workflow for processing pending orders.
Let’s examine these concepts in more detail:
Triggers
Triggers initiate workflows based on events, schedules, or conditions. They can be time-based (e.g., daily at 18:00) or event-based (e.g., new data arrival).
Execution Order
Workflow schemas define the precise routing logic that drives a workflow’s progression. They are often represented as Directed Acyclic Graphs (DAGs).
Branching
A workflow can branch into multiple paths either based on conditions (eg if-else) or for the shake of parallelism (fan-out). In messaging terminology, these branching patterns are often refered to as Content-Based Routers or Recipient Lists respectively.
Dependencies
The opposite of branching is merging. An activity that has multiple dependencies needs to wait until all its dependencies are satisfied before it can execute. And since we did mention messaging patterns, this is often referred to as Aggregator.
This requirement is important as this means that the workflow engine must track of the state and dependencies of each activity.
Implementing Workflows Link to heading
Now that we have defined the functionality of a workflow, let’s take a moment to think how we could implement a workflow.
Can we use a programming language? Link to heading
Of course we can. After all a computer program itself is pretty similar to a workflow. The main difference is that workflows focuses on activities, while a program focuses on instructions.
So why don’t we just do it ? And maybe use libraries that can help us abstract some of the commonly used patterns ?
Non functional requirements Link to heading
In Software Engineering we rarely stop at defining the functional characteristics of a problem. We also need to take the quality characteristics into consideration. In other words we need to consider how well our solution needs to address this problems, we need to consider the non functional requirements
So what are the non-functional requirements applicable to workflows?
Performance Link to heading
The ability to execute workflows within acceptable time limits, ensuring that activities are completed efficiently.
Scalability Link to heading
The ability to handle increased load both in terms of concurrent events size of data to process and activities to execute.
Reliability and Availability Link to heading
The ability to execute workflows without downtime, even in the face of failures.
Durability and Persistence Link to heading
The ability to persist workflow state and history, ensuring that workflows can resume after failures or restarts.
Observability Link to heading
The ability to monitor workflow execution, track progress, and debug issues.
Consistency Link to heading
The ability to ensure that workflows execute in a predictable manner.
Usability Link to heading
The ability to define workflows in a way that is understandable and maintainable by users.
The need for workflow engines Link to heading
This post makes clear what a workflow is and what are the functional and non-functional aspects of a workflow. I hope it makes clear that implementing quality workflows is not a trivial task.
This is why we need workflow engines, systems that provide the necessary infrastructure to satisfy the functional and non-functional requirements of workflows.
This is the first post of a series that will explore the world of workflow engines. Stay tuned!
